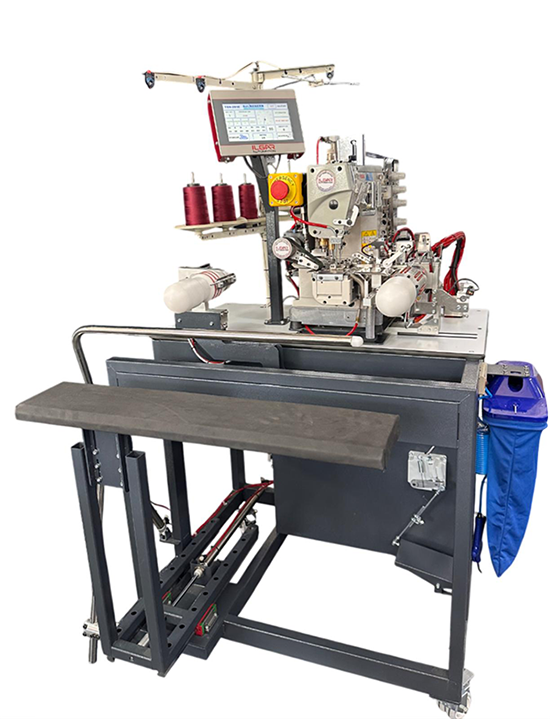

BHA-203E Skirt Hemming Machine

BHA-203E Bottom Hemming Automatic Sewing Machine

Ekipman Parametreleri / Equipment Parameters	BHA-203E
Gerilim/Voltage	AC220V
Basınç/Pressure	>0.6MPA
Güç/Power	1,2 KW
Dikiş hızı/Head speed	4500-5000 Prm
Dikiş Genişliği/Width of sew Width of sewing heming hem	16-30 mm
Dikiş uzunluğu/Sewing perimeter	34-90 cm
Verim (adet/dakika)/Yield (pcs/hour)	200-300
Net Ağırlık/Net weight (machine/table)	180
Brüt Ağırlık/Gross weight (machine/table)	195
Ambalaj ölçüsü/Package size (machine/table)	10090150

Maximum operating speed: 5000 RPM
Stitching capability: 400 stitches/mm; capacity varies by fabric type, 2000–3000 pieces per 8 hours
Minimum fabric working size: 34 cm (28 cm with child arm attachment), maximum 90 cm
Programmed operation feature with memory according to fabric types
Side seam shift function (left/right)
Ability to save 200 different programs
7-inch color touch screen with cloud-based remote monitoring, technical service, and control
Thread break warning sensor
System equipped with safety barrier sensors
Mixed size operation feature (automatic size separation when fabric weight decreases or increases)

Independent regula knife
Minimum 15 mm, maximum 35 mm hemming allowance
Automatic stacking system mounted on the machine
Real-time monitoring and optimization of sewing machine performance
Integration of machine learning and artificial intelligence technologies
Sensor data analysis for predictive maintenance
Automatic control of parameters such as sewing speed, and needle position
Digital integration of all processes from data collection to production management
Cloud-based systems for remote monitoring and control, with advanced software solutions for data analysis and reporting
